Specifications:
8bit Grain table sound module
44khz internal sample rate
PWM Audio @ 76.5khz
FREQ/PW/WAVE: -5 .. +5v safe but effective range 0..5v
On board 5v regulator, only +12/-12v rails required
Current Draw Approx 40ma on +12v rail
8HP Dual Layer Acrylic Panel @ 3mm total thickness

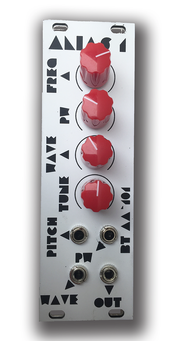

Alias 1

Classic waveforms with

a LO-FI twist


Alias VCOs are 8bit wavetable VCO modules with lofi PWM audio and finely tuned filter/amplifier to produce nice warm
digital aliasing with a n of character. Alias VCO provides 1v/oct tracking with CV control over wave shape and
pulse width. To top things off there is also a selectable wave shaping and sub oscillator providing -1oct/+1oct with
same waveform as primary oscillator.

Copyright © Beast-Tek. All rights reserved.

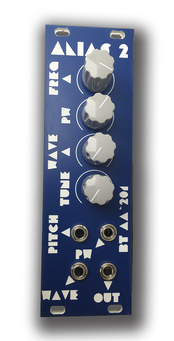

Alias 2

Chip Tune Inspired VCO

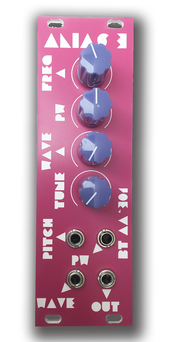

Alias 3

Weird Arpeggio LO-FI VCO

Price: $130 USD (each)

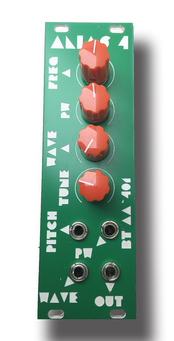

Alias 4

Dirty LO-FI Bass
