Price : $250 USD
8bit Grain table sound module
24khz / 20khz internal sample rate
PWM Audio @ 76.5khz
FREQ/MOD1/MOD2: -5 .. +5v safe but effective range 0..5v
Clock input: 0-5v only
On board 5v regulator, only +12/-12v rails required
Current Draw Approx 58ma on +12v rail
14HP Dual Layer Acrylic Panel @ 3mm total thickness
Demo as Drum Module
Copyright © Beast-Tek. All rights reserved.

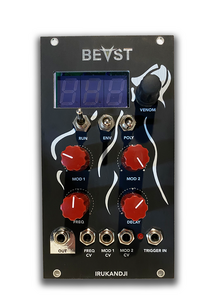

Irukandji Glitch Drum/VCO
The Irukandji Glitch Drum can be used as a drum module (using an external trigger source), a free running oscillator or even a complete lo-fi synth voice when trigger in and Freq CVs are connected to a keyboard controller or midi2cv interface etc.
The Irukandji Glitch Drum contains 1000 crazy circuit bent glitchy percussion and synth sounds.
Modulation parameters have different effects on different patches. They are grouped together in batches of 25 sharing the same set of modulation parameter to make life a (little) bit easier.
Demo as v/oct VCO
