Dirty Glitch VCO


The DirtyGlitch is a high experimental VCO harnessing grain table synthesis driven through dual glitch engines to produce sounds. The first 90 patches attempt to be more musical like a contemporary VCO .. make sure the delay (CLK RATE knob on these patches) is in the centre position to access all of the available tones.

The Following 910 patches are just outright bizarre, containing various clock, internal step-sequence and LFO / knob based modulations and weirdness as per the patch list. Aside from use as a VCO, Dirty Glitch can be used as a highly interesting modulation source or can produce some really kick-ass unusual percussion sounds in conjunction with a VCA.

Copyright © Beast-Tek. All rights reserved.

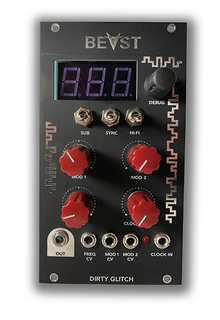

Original Panel

Price : $250 USD

Black PCB Panel

Specifications:
8bit Grain table sound module

31khz / 10.5khz internal sample rate
PWM Audio @ 76.5khz
FREQ/MOD1/MOD2: -5 .. +5v safe but effective range 0..5v
Clock input: 0-5v only
On board 5v regulator, only +12/-12v rails required
Current Draw Approx 58ma on +12v rail
14HP Dual Layer Acrylic Panel @ 3mm total thickness
